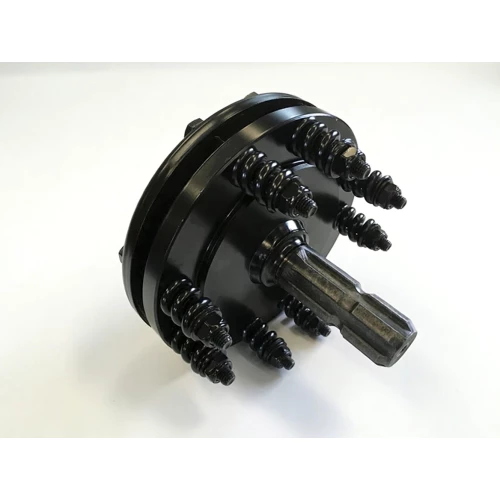

PTO Shaft Overrunning Clutch – RAS1 Series (with Splined Shaft)
The PTO Shaft Overrunning Clutch – RAS1 Series (with Splined Shaft) is a premium-quality overrunning clutch specifically engineered for PTO (Power Take-Off) drive shaft systems used across agricultural, industrial, and forestry machinery. Also known as a PTO slip clutch, PTO safety clutch, or tractor PTO overload protector, this device safeguards your expensive equipment from damage caused by sudden torque overloads, obstructions, and operational jamming.
Available Models: RAS1
Torque Range: Torque: 2400 Nm
Spline Options: 1 3/8″ Z6 (female & male)
Key Components: Circlip, Retaining washer, Push pin kit, Hub, Prong kit (Qty.=3), Housing with splined shaft, Grease nipple
Technical Specifications & Dimensions
| Series | Max Torque (Nm) | Spline (female) | Spline (male) | A (mm) | B (mm) | C (mm) |
|---|---|---|---|---|---|---|
| RAS1 | 2400 | 1 3/8″Z6 | 1 3/8″Z6 | 142 | 21 | 38 |
* All dimensions in millimeters. Torque values in Newton-meters (Nm). Spline specifications follow ISO/ASAE standards. Contact us for custom configurations.
Key Features & Advantages
📈
Wide Torque Selection Range
Available in multiple torque ratings (2400 Nm) to match virtually any PTO-driven implement requirement.
⚖
Safety Certified
Manufactured under ISO 9001:2015 quality management with CE marking for European and international compliance.
📦
Compact & Lightweight
Engineered for minimal additional length and weight on the PTO shaft, preserving driveline balance and clearance.
🔁
Multiple Output Configurations
Available in yoke, splined shaft, and flanged output variants to suit any installation requirement.
🔒
Precision Overload Protection
Calibrated to disconnect at exact torque thresholds, preventing costly damage to gearboxes, bearings, and implement mechanisms.
⚡
Rapid Response Time
Triggers within milliseconds of overload onset, minimizing the duration of damaging torque transfer to connected equipment.
How It Works — Operating Principle
The overrunning clutch (also known as a freewheel clutch) allows the output shaft to rotate freely in one direction while transmitting full torque in the other. Inside the housing, spring-loaded prongs engage with a ratchet surface on the hub. When the input shaft drives the output shaft in the intended direction, the prongs lock into the ratchet teeth and transmit power. When the output shaft attempts to overdrive the input (such as when a tractor PTO is disengaged while a heavy flywheel implement is still spinning), the prongs disengage and the output freewheels. This prevents dangerous back-drive forces from traveling through the PTO shaft to the tractor transmission, protecting both equipment and the operator.
Reset Method: Automatic — continuous engagement/disengagement
Best Suited For: Implements with high rotational inertia (mowers, balers, flail choppers) requiring back-drive protection
Typical Agricultural Application Scenarios
Feed Mixers & TMR Wagons
Safeguards the mixer auger drive from damage caused by twine wrap, frozen feed blocks, or excessive loading that generates torque beyond design limits.
Grain Augers & Conveyors
Prevents auger tube distortion and gearbox failure when grain bridges, moisture-swollen grain, or foreign objects create sudden resistance in the conveying path.
Post Hole Diggers
Absorbs extreme torque shock when the auger bit strikes rock, buried concrete, or dense root masses, protecting both the auger drive and tractor PTO.
Snow Blowers & Snow Throwers
Guards against damage from ice chunks, frozen debris, and compacted snow banks that generate sudden, extreme torque loads on the impeller shaft.
Rotary Mowers & Flail Mowers
Protects the mower gearbox from damage when blades strike hidden rocks, stumps, or metal debris. The torque limiter absorbs the shock load and prevents it from reaching the tractor PTO.
Torque Limiter Type Comparison
| Feature | Ball Detent | Friction Disc | Shear Pin/Bolt | Ratchet (Pawl) | Automatic (Cam) |
|---|---|---|---|---|---|
| Torque Range | Low–Medium | Medium–High | Low–Very High | Low–High | Medium–High |
| Speed Range | 540–1000 RPM | 540–1000 RPM | 540–1000 RPM | 540–1000 RPM | 540–1000 RPM |
| Reset Method | Automatic | Automatic (slip) | Manual (replace bolt) | Automatic (ratchet) | Automatic (cam) |
| Best Application | Light implements | Frequent moderate overloads | Infrequent severe overloads | Frequent transient overloads | High-utilization, no consumables |
| Consumable Parts | None | Friction linings (long life) | Shear bolts | None | None |
| Torque Precision | Moderate | Good (adjustable) | Excellent (bolt-grade calibrated) | Good | Very Good (adjustable) |
Installation & Usage Guide
Installation Steps
Step 1: Verify that the PTO shaft spline size matches the torque limiter spline specification (1 3/8″ Z6 (female & male)). Clean all spline surfaces thoroughly.
Step 2: Slide the torque limiter onto the PTO shaft spline, ensuring full engagement. Secure with the provided push pin kit or retaining hardware.
Step 3: Connect the output side (yoke or splined shaft) to the implement input shaft or gearbox. Ensure proper alignment and secure all fasteners to the recommended torque.
Step 4: Apply grease through the grease nipple to lubricate the spline interface and internal components. Use lithium-based EP grease (NLGI #2).
Step 5: Perform a low-speed test run to verify correct engagement and smooth operation before full-power operation.
Safety & Maintenance Tips
⚠ Always disengage the tractor PTO before inspecting or servicing the torque limiter.
⚠ Use only genuine replacement parts specified for your series to maintain the correct torque rating.
⚠ Re-grease spline connections every 8 operating hours or as specified in your equipment manual.
⚠ Inspect for wear, cracks, or damage before each season. Replace worn components immediately.
⚠ Never operate with damaged or missing PTO shaft safety shields.
Selection Guide — Choosing the Right Model
Selecting the correct torque limiter requires confirming the following parameters:
✓ Required Torque Rating (Nm): Match the implement’s maximum operating torque plus a 20–30% safety margin.
✓ PTO Shaft Spline Size: Commonly 1 3/8″ Z6 (6-spline) or 1 3/4″ Z6/Z20. Verify both input and output spline requirements.
✓ PTO Speed: Standard 540 RPM or economy 1000 RPM — confirm your implement’s requirement.
✓ Connection Type: Yoke output for standard shaft tubes, splined shaft for inline assemblies, or flanged output for direct gearbox mounting.
✓ Overload Frequency: Frequent overloads favor auto-reset types (ratchet, friction, automatic). Infrequent but severe overloads suit shear bolt types.
✓ Environmental Conditions: Consider dust, moisture, temperature extremes. Sealed automatic and friction types offer superior protection in harsh environments.
Need help choosing? Contact our engineering team for personalized selection assistance.
Quality Certification & Service Commitment
✅
ISO 9001:2015
Certified quality management system ensuring consistent product excellence
✅
CE Marked
Compliant with European safety, health, and environmental protection standards
💪
12-Month Warranty
Full warranty against manufacturing defects under normal operating conditions
🚚
Global Shipping
Fast worldwide delivery with professional export packaging and documentation
Frequently Asked Questions (FAQ)
What Our Customers Say
🇮🇳 Vikram P. — Farm equipment distributor, Punjab, India
“Excellent product for the Indian market. Compatible with all major tractor brands including Mahindra, TAFE, and Sonalika. Our customers appreciate the reliability and competitive pricing.”
★★★★★
🇫🇷 Pierre L. — Vineyard operator, Bordeaux, France
“Perfect for our vineyard mowers operating in tight rows. The compact design doesn’t add excessive length to the PTO shaft, and the protection is reliable when vines or stakes get caught.”
★★★★★
🇦🇷 Miguel R. — Ranch manager, Buenos Aires Province, Argentina
“Outstanding durability in our dusty Pampas conditions. We’ve been using these for two years on grain augers and feed mixers with zero failures. The sealed design keeps the dust out.”
★★★★★
🇺🇸 David H. — Equipment dealer, Iowa, United States
“Our customers keep coming back for these. The quality matches or exceeds European OEM brands at a fraction of the cost. We stock the full range for combine, baler, and mower applications.”
★★★★★
🇳🇿 Craig W. — Dairy farmer, Waikato, New Zealand
“Using these on our pasture toppers and feed wagons. They’ve saved our PTO shafts from damage multiple times when hitting hidden stumps. Brilliant design — the auto-reset means we don’t lose any milking time.”
★★★★★
